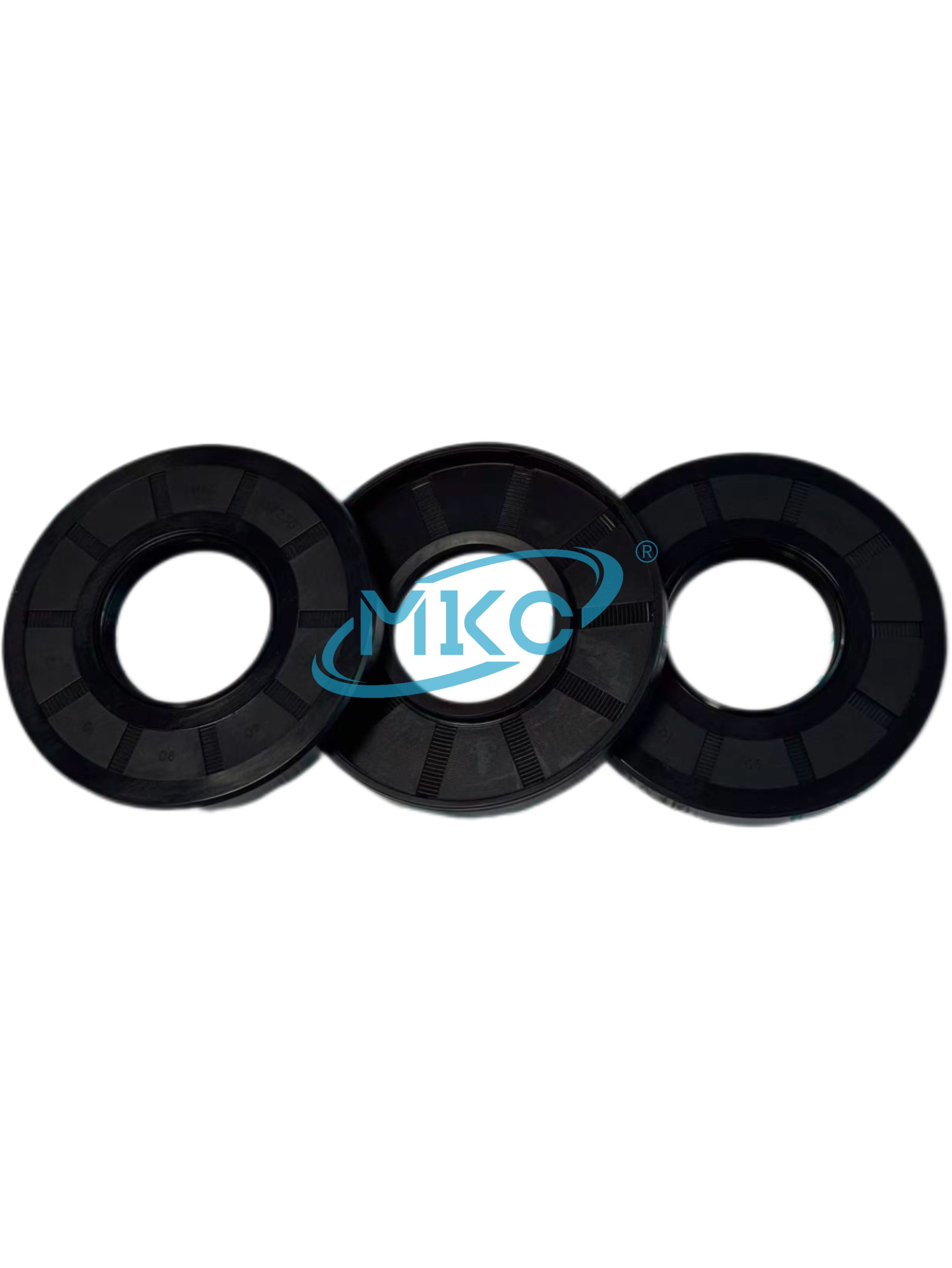

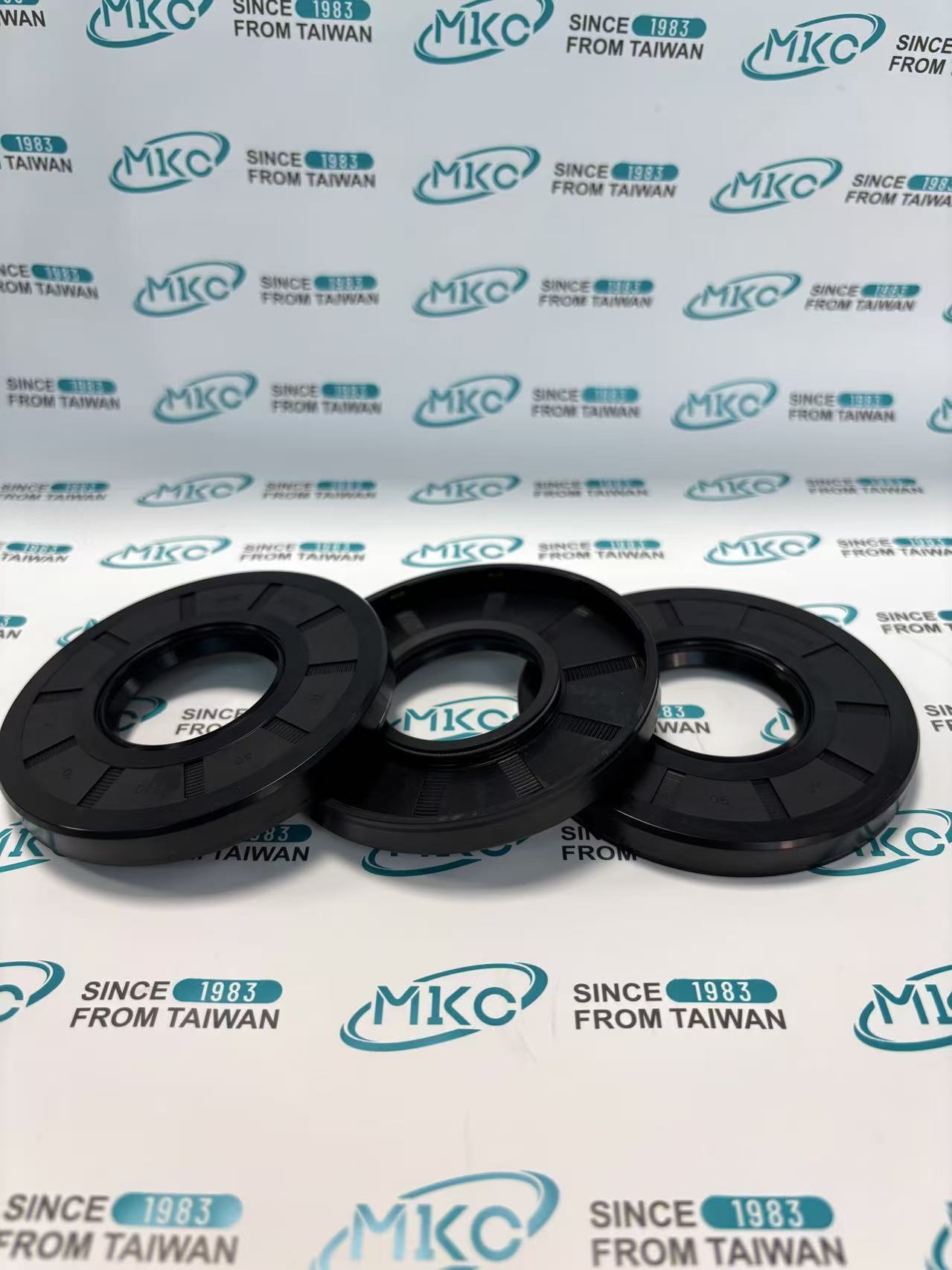

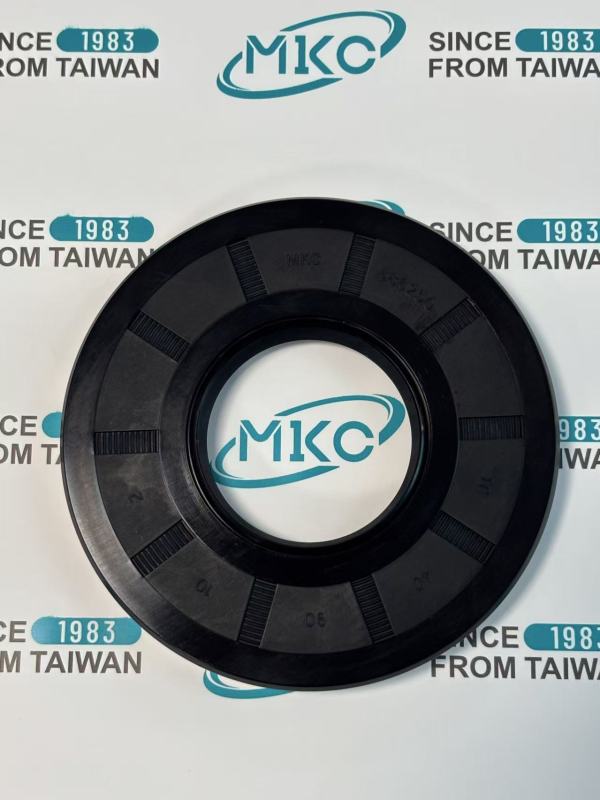

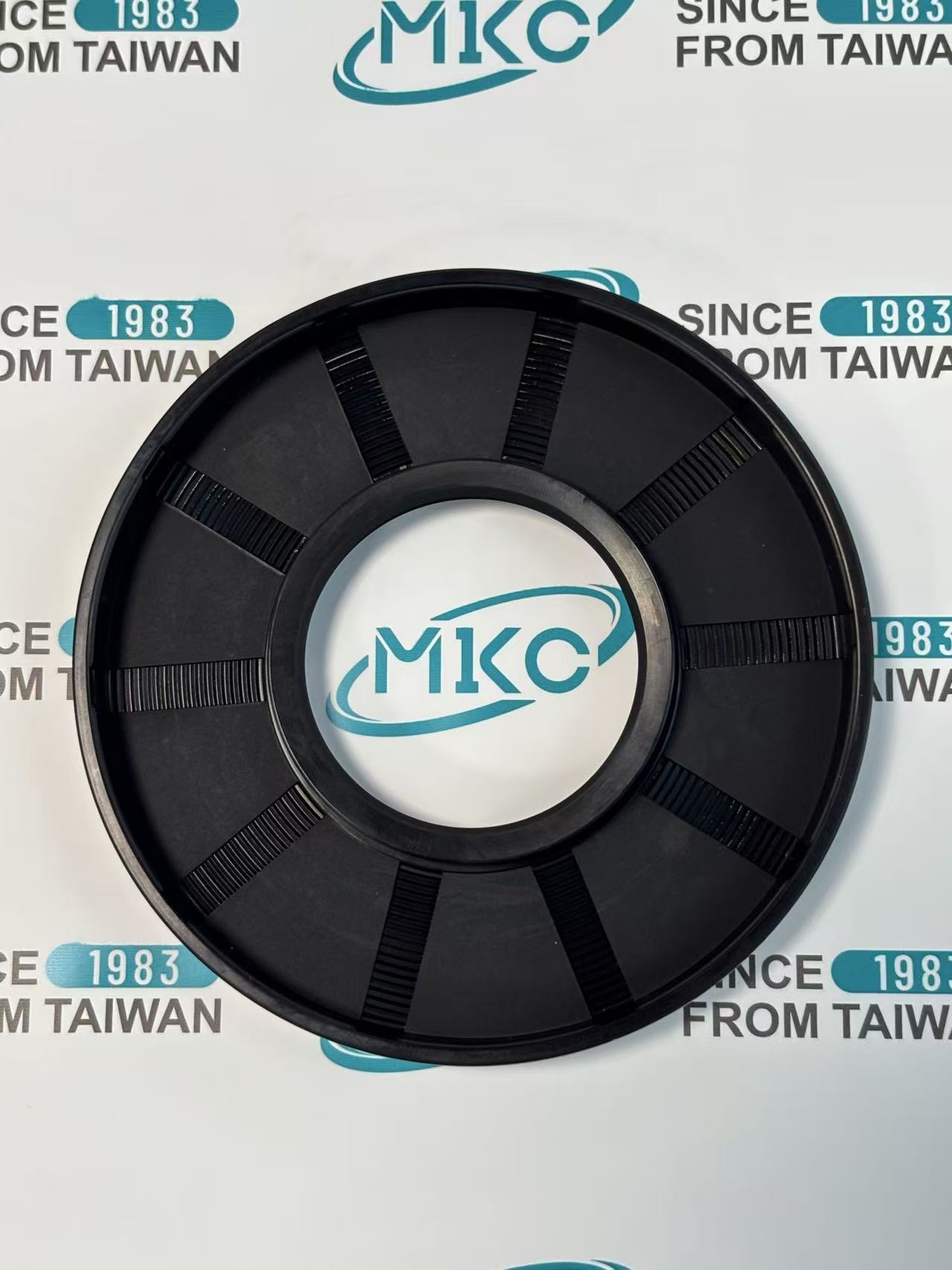

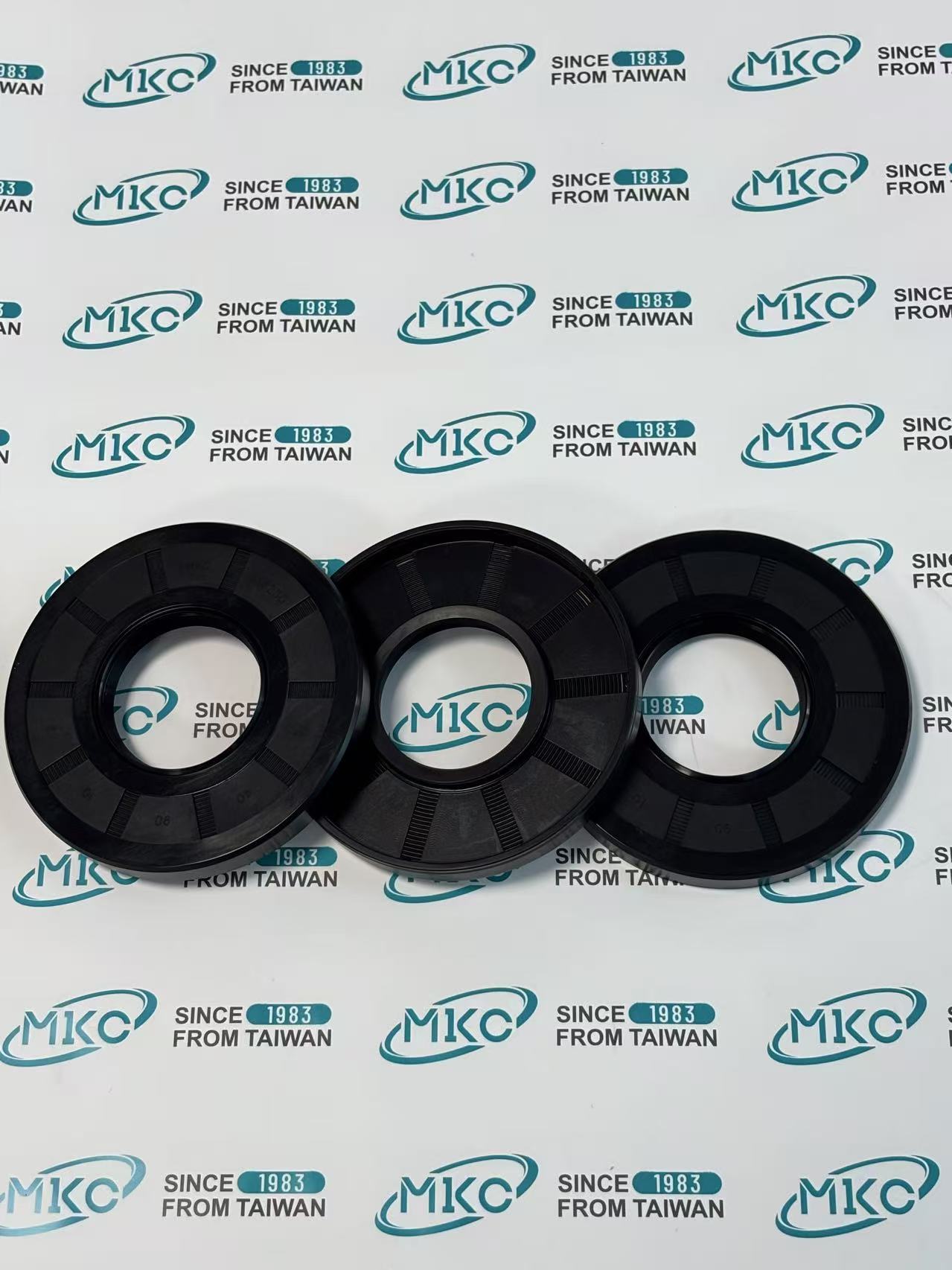

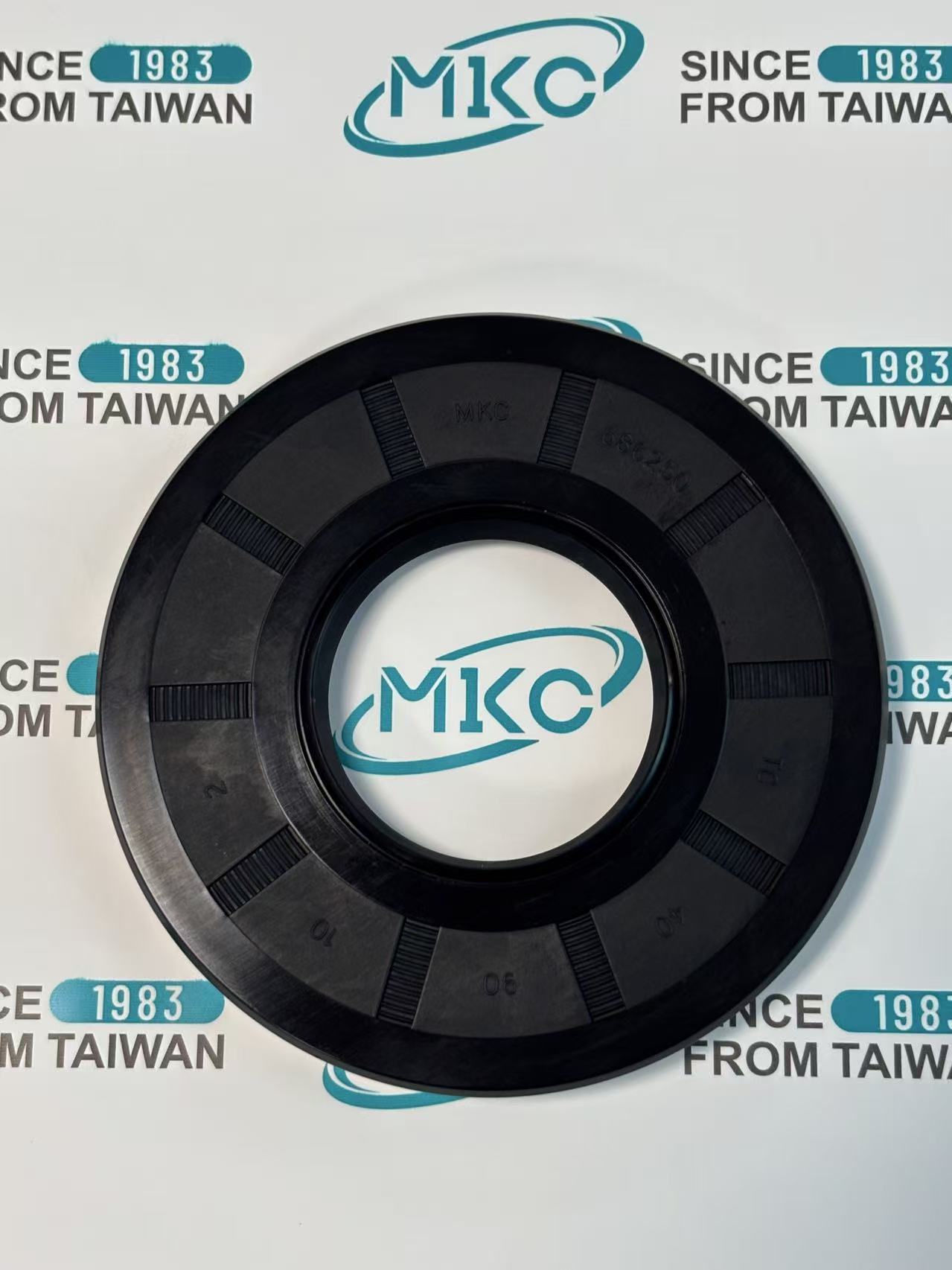

MKC TC Series NBR Oil Seal, model 5T073-10711MKC, with dimensions 40*90*10mm. Made of high-quality NBR rubber, featuring a double-lip spring-loaded design to prevent oil leakage and block dust ingress. Ideal for agricultural machinery, automotive, and general industrial rotating shaft applications.
Product Specifications:
| Product Name |
TC Oil Seal |
| Attachment Model |
5T073-10711MKC |
| Size |
40*90*10 |
| Weight |
63.8g |
| Operating Temperature Range |
-25℃ to 100℃ |
Key Features：
• Temperature Resistance: Stable performance from -25°C to 100°C, suitable for varying weather conditions in farming environments.
• Wear Resistance: Durable NBR construction withstands high friction in continuous operation.
• Oil Resistance: Excellent compatibility with common mineral lubricants, preventing degradation and swelling.
• Dust & Moisture Resistance: Double-lip design effectively blocks dirt, water, and field contaminants from entering the system.
• Spring-Loaded Sealing: Built-in garter spring maintains consistent lip pressure for long-lasting sealing performance.
Applications:
• MKC TC Series Oil Seal
• Agricultural machinery & harvester rotating shaft systems
• Gearboxes, reducers, and general industrial equipment requiring 40*90*10mm sealing
• Rice and grain farming equipment, as well as light-duty automotive applications
